產品型號：DHG
產品代碼：325435
產品價格：345
產品編碼：45646
計量單位：臺
折 扣 率： 0
最后更新：2015-11-20
關 注 度：6944
生產企業：鄄城東易日盛實驗儀器商城
|
|
|
 與企業聯系時請告知該信息來自教育裝備網！ |
|
|
產品詳細介紹產 品 說 明

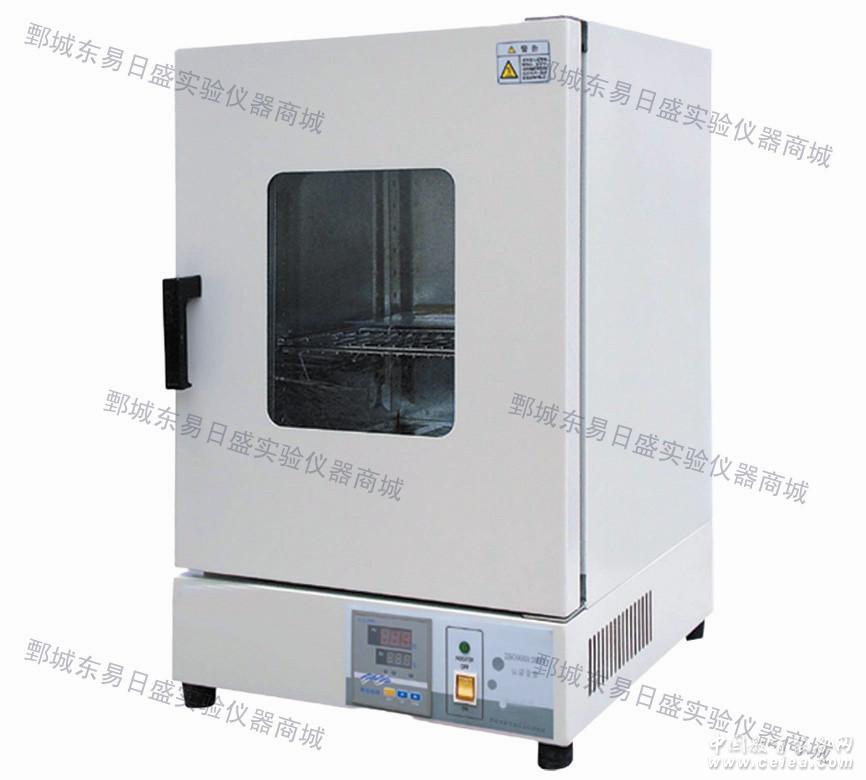

DHG型系列電熱恒溫干燥箱
DHG Series Electrothermal Constant-temperature Drying Box
DHG型系列電熱恒溫鼓風干燥箱（干烤滅菌器）
DHG Series Electrothermal Constant-temperature Blast Drying Box (Hot Air Sterilizer)
適用范圍Applicable range：
適用于工礦企業，化驗室，科研單位等作干燥、烘焙熔蠟、滅菌作用。
It is applicable to industrial and mining enterprises, control laboratories, scientific research units and so on, used for drying, baking, dewaxing, sterilizing, etc.
產品特點：Features
※箱體內外采用優質鋼板焊接而成，表面靜電噴塑，工作室內為鏡面不銹鋼或噴耐高溫銀漆，門帶觀察窗或雙重門結構，造型新穎、美觀、節能。
Both the internal and external of box body are made of high quality steel sheet by welding, the surface is electrostatic spraying treated, internal of workroom is made of finished stainless steel or coated with high temperature resistant silver paint, the door bears observation window or is of double-door structure, it is novel and elegant in appearance and has advantage of energy saving.
※微電腦智能數顯控溫儀、控溫精確可靠，同時顯示設定溫度和箱內溫度，具有超溫過熱、漏電、傳感器故障報警功能，定時功能。（可選智能型液晶控溫儀）
Microcomputer based intelligent digital display temperature controller, it is accurate and reliable in temperature control, it is able to display preset temperature and the actual temperature inside the box synchronously, has alarm functions of over-temperature/heat, electric leakage and sensor failure, also has timing function. (Intelligent LCD temperature controller is optional).
※采用低噪聲風機和合適風道組成熱風循環系統，干熱空氣直接經過受熱物體干燥、滅菌。
Adoption of low-noise fan and suitable air channel that form the hot air circulating system, the heated dry air flows through the objects directly to dry and sterilize.
升級型液晶顯示控溫儀除以上功能外，還具有可編程控制溫度，可配RS-485接口，可連接記錄儀和計算機，能記錄溫度參數的變化狀況（選配）。
Besides the above mentioned functions, the upgraded LCD temperature controller also has function of programmable temperature control, it can be equipped with RS-485 interface that is used to connect it with the recorder and computer for recording the changing conditions of temperature parameters (optional).
型號Model
技術參數
Tech. parameters
DHG-9030(A)
DHG-9070（A）
DHG-9140（A）
DHG-9240（A）
電源電壓Supply voltage
～220V 50Hz
容積Volume
30L
70L
140L
225L
功率Power
500W
1000W
1500W
2000W
控溫范圍Temp. range
RT+10-250℃
溫度分辨率Temp. resolution
0.1℃
溫度波動度Temp. fluctuation
±0.5℃
溫度均勻度Temp. homogeneity
±0.5℃
工作室尺寸Dim. of working chamber
300×300×350
350×450×450
450×550×550
500×600×750
外型尺寸Outline dim.
420×420×620
480×520×820
580×760×930
630×810×1130
載物托架（塊）（標配）
Shelves (normal)
2
2
2
2
定時范圍Timing range
1-9999min
備注Remark
A：不銹鋼內膽
A: stainless steel internal bladder
型號Model
技術參數Tech. parameters
DHG-9202-00（A）
DHG-9101-0（A）
DHG-9202-0（A）
DHG-9101-1（A）
DHG-9202-1（A）
DHG-9101-2（A）
DHG-9202-2（A）
DHG-9101-3（A）
DHG-9202-3（A）
電源電壓Mains voltage
～220V 50Hz
容積Volume
16L
43L
70L
140L
225L
功率Power
250W
500 W
1000 W
1500 W
2000 W
控溫范圍Temp. range
RT+10-300℃
溫度分辨率Temp. resolution
0.1℃
溫度波動度Temp. fluctuation
±1℃
溫度均勻度Temp. homogeneity
±1℃
工作室尺寸Dim. of working chamber
250×250×250
350×350×350
350×450×450
450×550×550
500×600×750
外型尺寸Outline dim.
380×425×560
620×500×540
480×580×820
580×680×920
630×730×1120
載物托架（塊）（標配）
Shelves(normal)
2
2
2
2
2
定時范圍Timing range
1-9999min
備注Remark
A：不銹鋼內膽，溫度波動度為±0.5℃ |
|
